Surface treatment

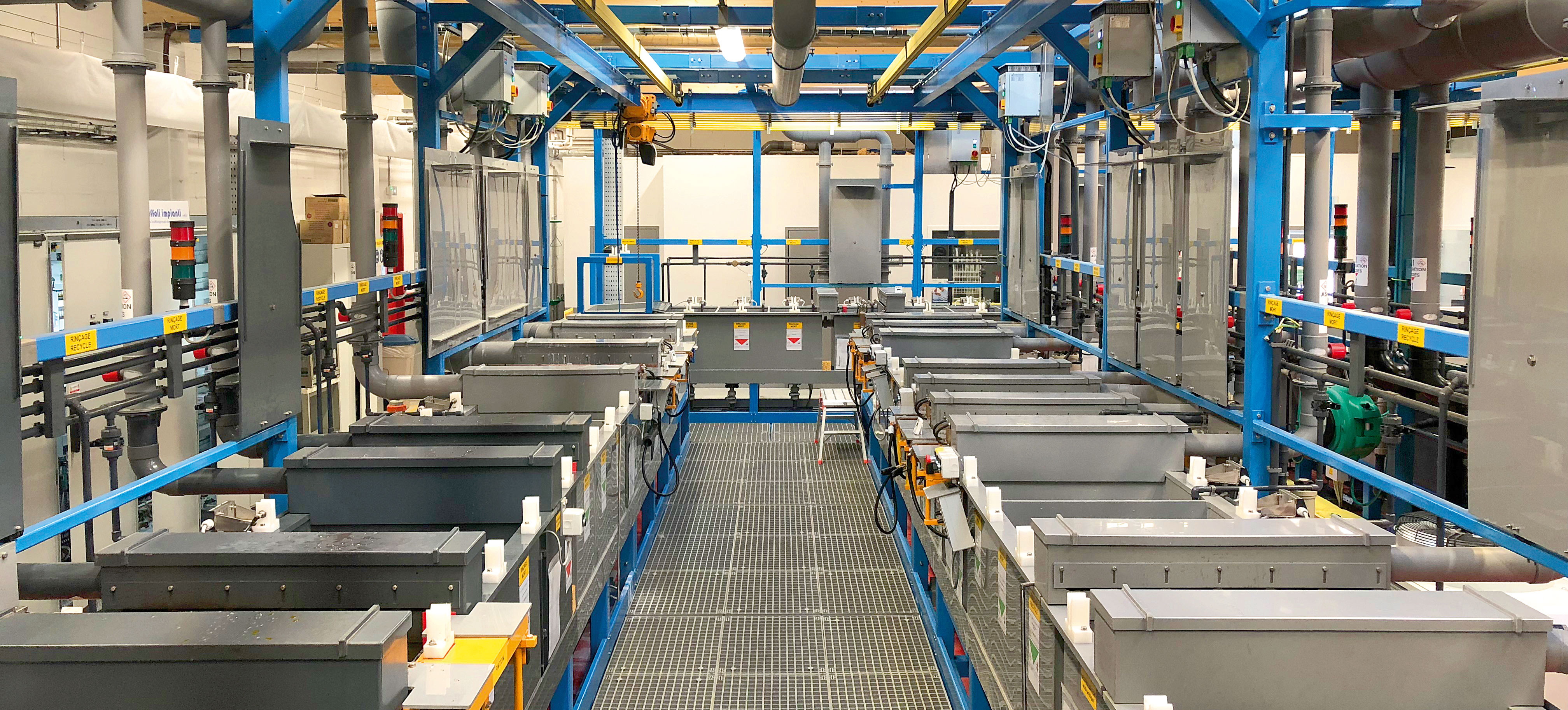

Since 2018, the company takes profit of a brand new surface treatment shop opened to third party customers. Driven via an automate, the new premise fulfills most recent technical and environmental requirements.

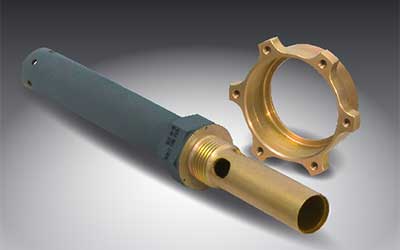

In aeronautical surface treatment, Gillis works on small and medium-sized parts* for external customers and machining shops.

Quality • Accuracy • Environment • Standards

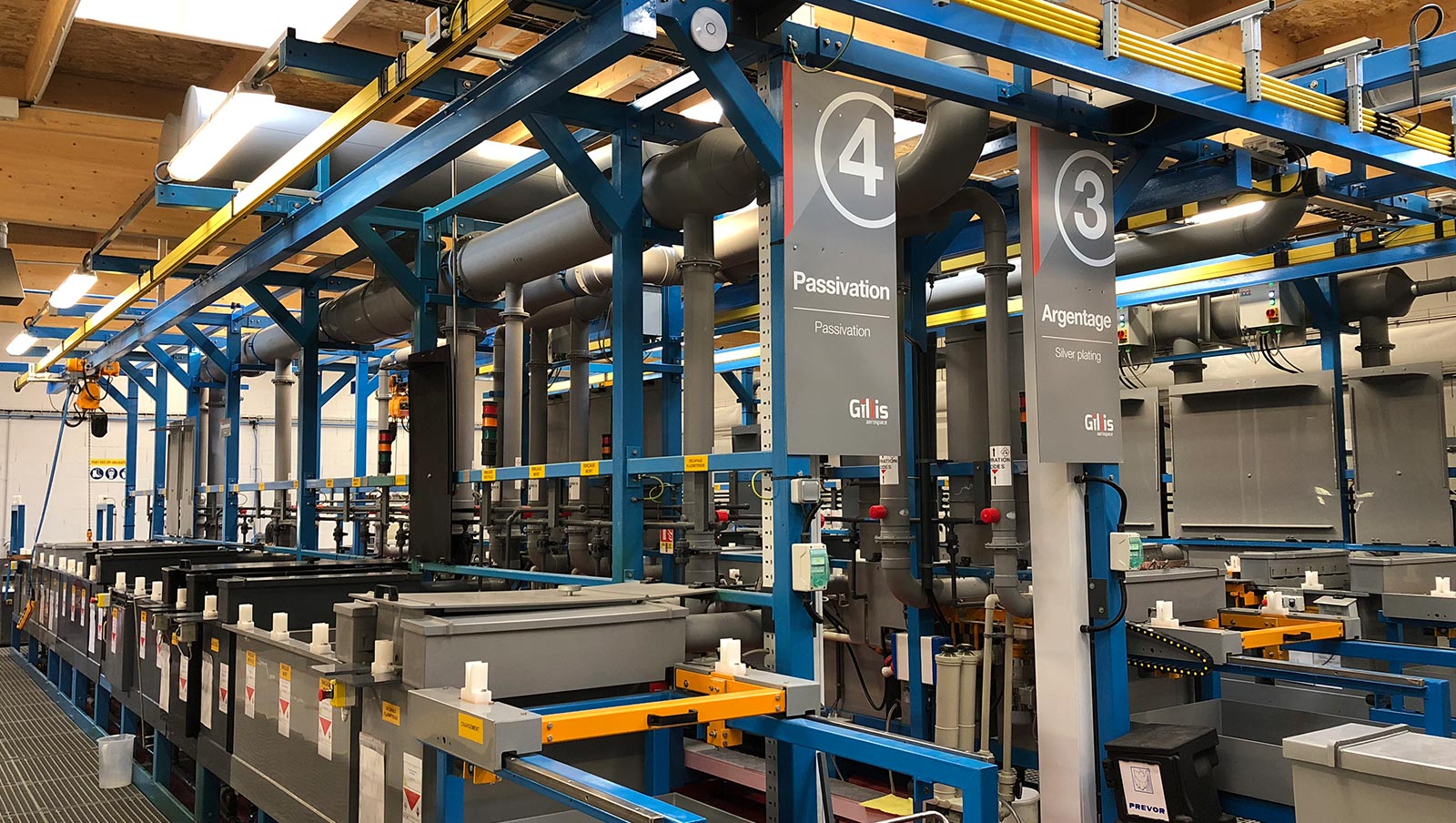

Passivation

EN 2516 (C2)
AMS2700 (types 6 & 8)
MFT0128
AIPI.02.05.005
ITC/CO/DV/019

*Maximum standard length: 470 mm Possible up to 700 mm

Cadmium

EN 2133
AMS QQP416
Air 3376
CCT LB522
AIPS.02.04.002

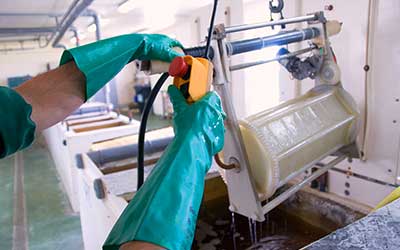

*Maximum length “at the barrel”: 170 mm
Maximum length with hanging tools: 500 mm

Silver coating

EN 2786 / CCT545
PAQ58C531
MFT0163
ADET 0163 / PRI 1100
ISO 4521

*Maximum length “at the barrel”: 170 mm
Maximum length with hanging tools: 500 mm

Surface finishing quality

Quality level of surface treatment operation is ensured by skilled personnel trained in accordance with the state of the art rules.

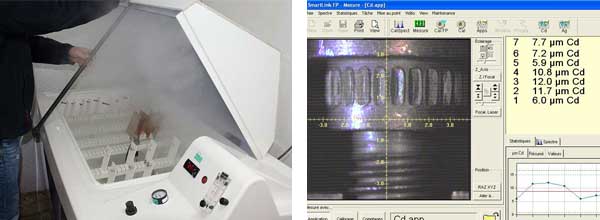

Baths follow-up is performed through automatic and standard devices as well as treatments constant survey through salt chamber exposure.

Thickness is checked by XRF.

Discover the surface treatment in video
